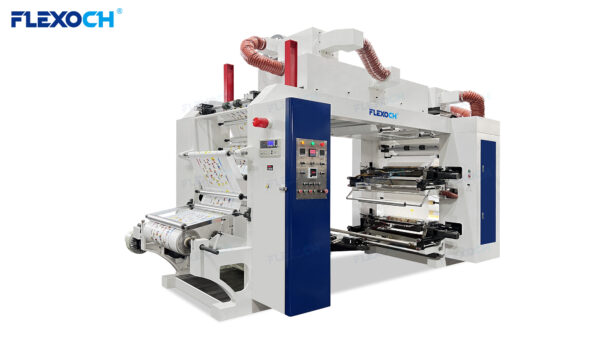

4 Color Stack Flexographic Printing Machine

The 4 Color Stack Flexographic Printing Machine is a practical solution for flexible packaging manufacturers seeking reliable printing performance and production flexibility. With a compact design and versatile configuration, it is widely used for packaging applications in food, daily chemical, industrial, and other industries. The machine is suitable for printing on various substrates, including plastic films, paper, and nonwoven materials.

Max. Machine Speed

120 m/min

Print Width

250-3000mm

Colors

4 Colors

Printing Precision

±0.15mm

Ink

Water base ink

Drive System

Synchronous belt drive

Introduction

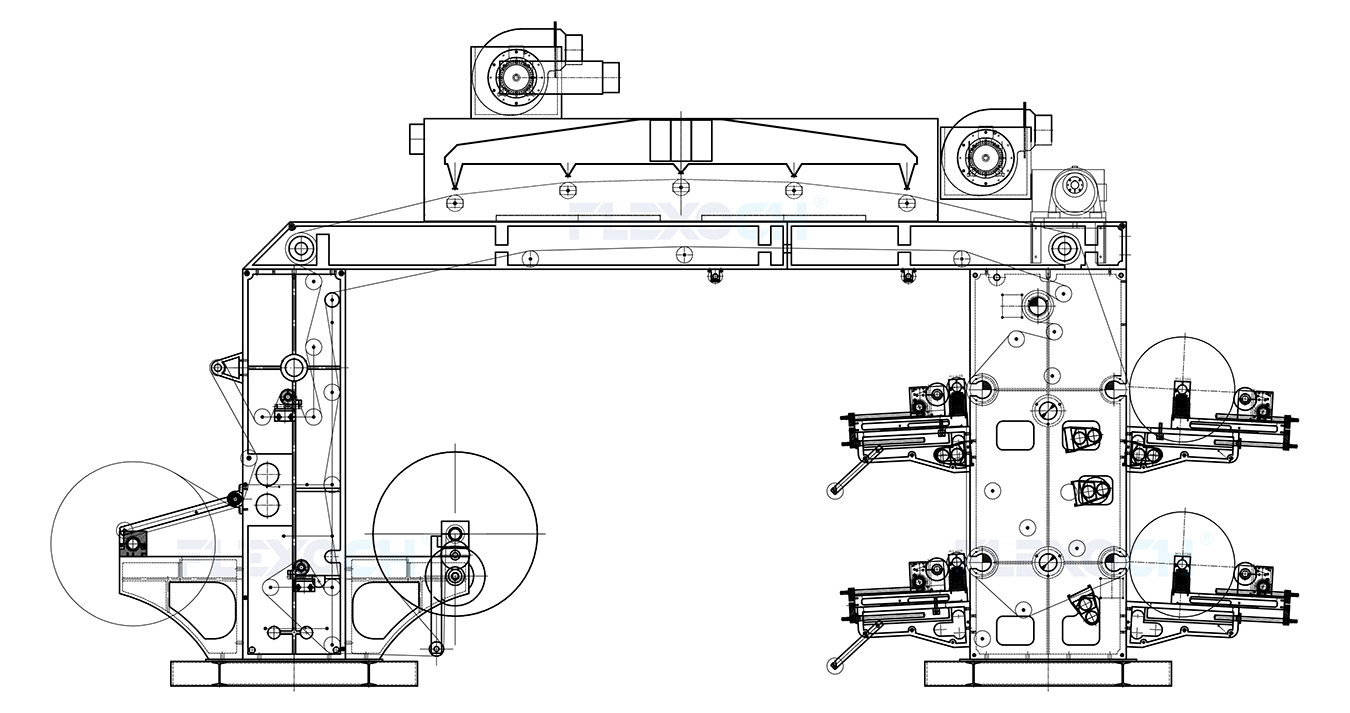

The 4 Color Stack Flexographic Printing Machine features a stack-type structure designed for efficient and stable packaging production. It supports double-sided printing, enabling front and back printing in a single process to improve production flexibility. With independent printing units, the machine offers convenient color adjustment, quick job changeover, and reliable performance for various printing requirements.

Precise 4-color flexographic printing with consistent quality.

Double-sided printing for expanded production flexibility.

Independent units for easy color adjustment and operation.

Simple maintenance with stable production performance.

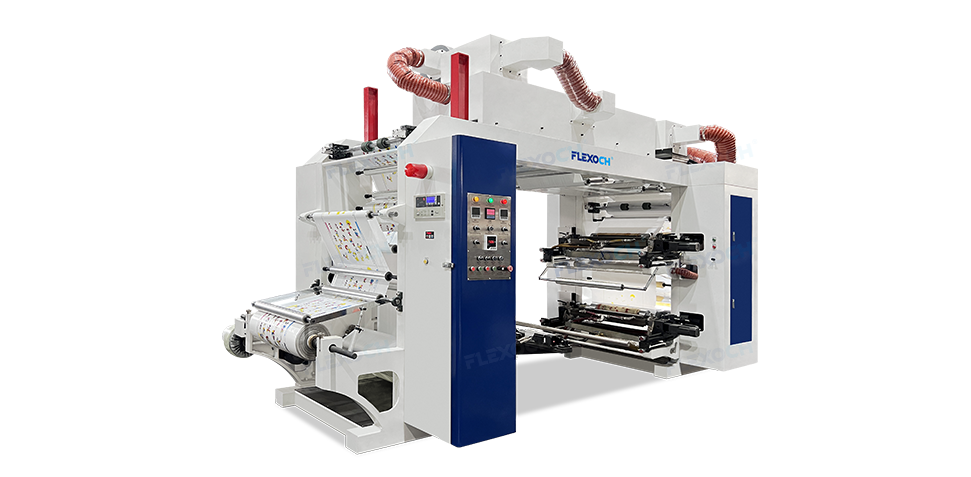

4 Color Stack Flexo Printing Machine for Flexible Packaging

❮

▶

❯

Why Choose This Machine?

high Efficiency. Stable Performance, Excellent Printing Quality

High Efficiency

Mer npeedvo tn 250nimin tomhert high-volume production demands.

Stable Performance

Mdvenced oantrul eyetemendures long term stableoperaton,

Excellent Quality

high precatan svrcng unit dctners chip and rtvd ponting.

Wide Application

Subtitle for various materials and nduatres.

Technical Specifications

Model	CH4-600B-S	CH4-800B-S	CH4-1000B-S	CH4-1200B-S	CH4-1400B-S	CH4-1600B-S
Max. Web Width	650mm	850mm	1050mm	1250mm	1450mm	1650mm
Max. Printing Width	560mm	760mm	960mm	1160mm	1360mm	1560mm
Max. Mechanical Speed	120m/min
Max. Printing Speed	100m/min
Max. Unwind/ Rewind Dia.	Φ800mm
Drive Type	Synchronous belt drive
Printing Length (repeat)	300-1300mm
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified
Ink	Water base ink or solvent ink
Range of Substrates	Plastic film,Paper, Non-Woven, Aluminium foil,PP woven
Photopolymer plate	To be specified

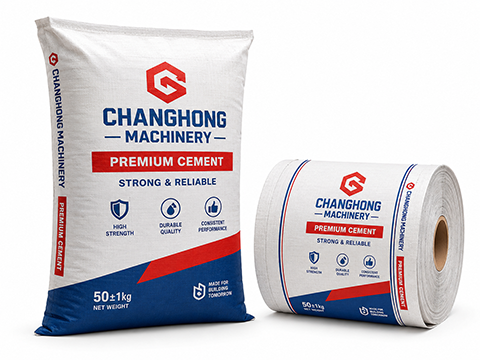

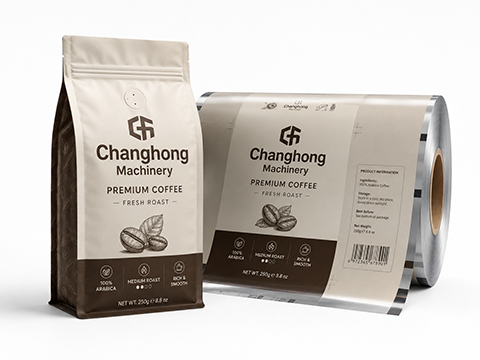

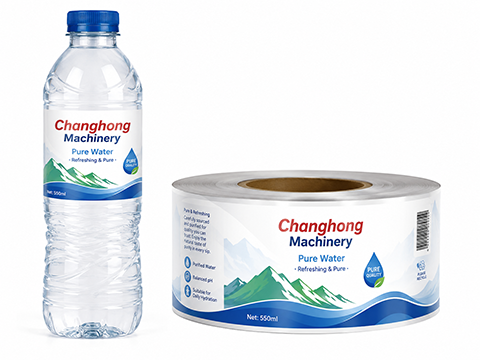

Product Samples

Trusted by Customers Across the Globe

Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

Countries & Regions

2000

Happy Customers

Years Experience

Aftersales Support

Frequently Asked Questions

What are the advantages of a stack flexographic printing machine?

The stack-type structure provides flexible operation, easy maintenance, and efficient production. Each printing unit works independently, allowing convenient color adjustment and quick job changeover to meet different printing requirements.

What is the benefit of double-sided printing capability?

The double-sided printing function allows printing on both sides of the substrate in a single production process, improving production efficiency and expanding application possibilities for packaging materials that require front and back printing.

What types of substrates can this flexographic printing machine handle?

The machine is suitable for various flexible packaging substrates, including plastic films, paper, nonwoven fabrics, and other flexible materials. It provides stable printing performance for different packaging applications.

Is the flexo printing machine easy to operate and maintain?

Yes. The practical stack structure provides convenient access to printing units, making operation, adjustment, and routine maintenance easier. Its user-friendly design helps reduce downtime and improve production efficiency.

Can this stack flexo machine be customized to meet specific production requirements?

Yes. The machine can be customized with different printing widths, color configurations, drying systems, unwinding and rewinding options, and other functions based on specific production needs, materials, and application requirements.

What is the difference between a stack flexo printing machine and a CI flexo printing machine?

A CI flexo printing machine offers higher registration accuracy and stable print quality with a central impression drum structure. A stack flexo printing machine provides flexible operation, easy maintenance, and double-sided printing capability.

Related Machines

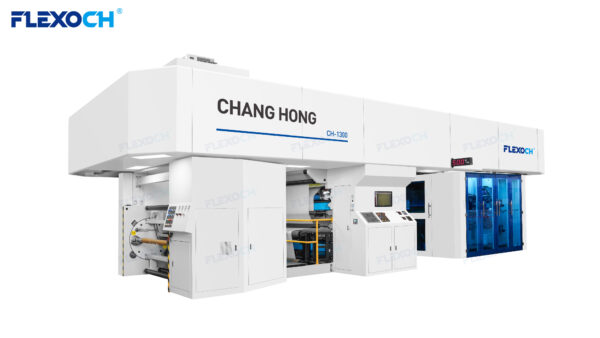

4 Color Gearless Flexo Printing Machine

The 4 Color Gearless Flexo Printing Machine is a high-performance printing solution designed for precise and stable production of flexible packaging materials. Equipped with a full servo drive system and advanced gearless transmission technology, it ensures superior registration accuracy. It is widely used for printing on plastic film, paper, and nonwoven materials, delivering consistent color quality even at high production speeds.

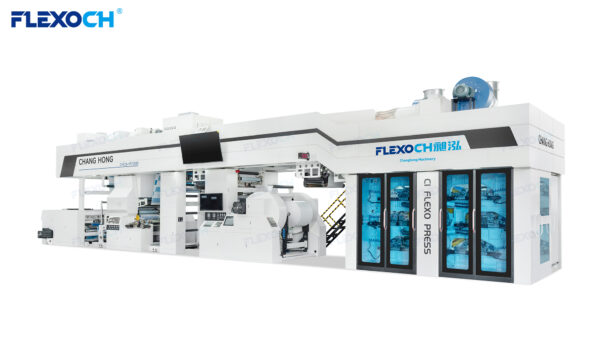

6 Color Gearless Flexo Printing Press

The 6 Color Gearless Flexo Printing Press is a high-speed printing solution designed for high-quality flexible packaging production. Equipped with a full servo drive system,and sleeve structure, it ensures precise registration and stable printing performance. With enhanced 6-color capability, it is ideal for complex multi-color printing on film, paper, and nonwoven materials, delivering consistent quality in continuous production.

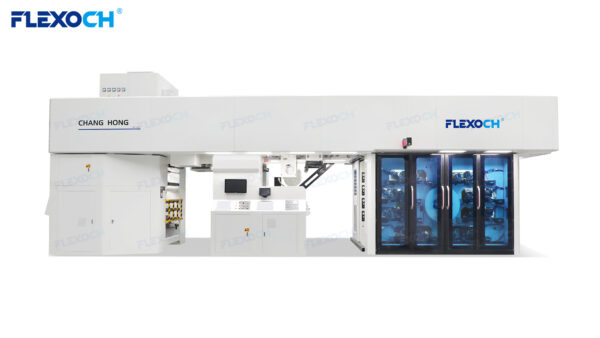

8 Color Gearless Flexographic Printing Press
