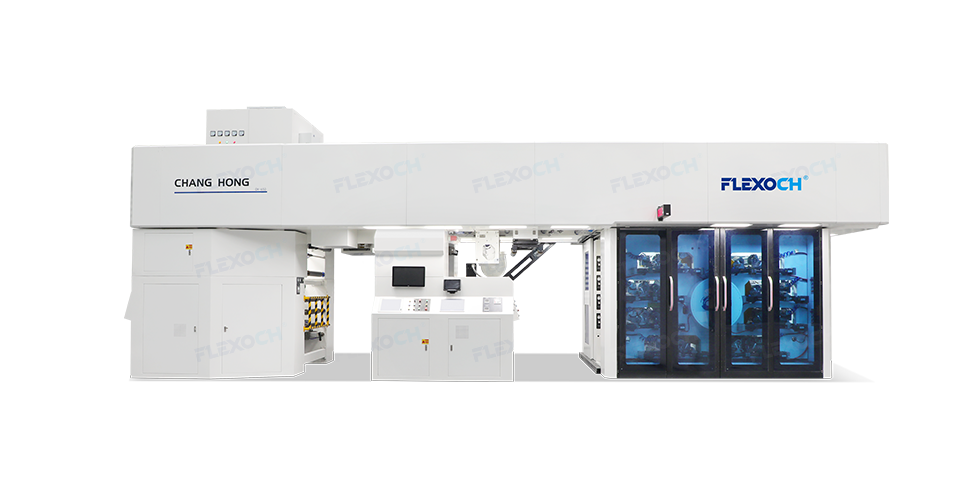

The 8 color gearless flexographic printing press is a high-end solution for ultra-high quality flexible packaging production. Equipped with a full servo drive system, gearless transmission technology, and sleeve structure, it ensures excellent registration accuracy and stable color performance. With 8-color capability, it is ideal for complex artwork and premium multi-color printing on various flexible materials, delivering consistent quality even during continuous high-speed production.
Introduction
Built for maximum precision, color richness, and sustainable production, this gearless flexographic printing press integrates intelligent automation and advanced control systems to meet demanding packaging requirements. Its gearless design combined with full servo technology ensures superior performance, reduced maintenance, long-term operational reliability, and eco-friendly production with reduced waste and improved resource efficiency.
Why Choose This Machine?
high Efficiency. Stable Performance, Excellent Printing Quality
Mer npeedvo tn 250nimin tomhert high-volume production demands.
Mdvenced oantrul eyetemendures long term stableoperaton,
high precatan svrcng unit dctners chip and rtvd ponting.
Subtitle for various materials and nduatres.
Model | CHCI8-600F-S | CHCI8-800F-S | CHCI8-1000F-S | CHCI8-1200F-S | CHCI8-1400F-S | CHCI8-1600F-S |
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm | 1450mm | 1650mm |
Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
Max. Mechanical Speed | 500m/min | |||||
Max. Printing Speed | 450m/min | |||||
Max. Unwind/Rewind Dia. | Φ800mm/Φ1200mm | |||||
Drive Type | Gearless full servo drive | |||||
Printing Length (repeat) | 400-800mm | |||||
Electrical Supply | Voltage 380V. 50 HZ.3PH or to be specified | |||||
Ink | Water base ink or solvent in | |||||
Range of Substrates | Plastic film,Paper, Non-Woven, Aluminium foil,PP woven | |||||
Photopolymer plate | To be specified | |||||
Trusted by Customers Across the Globe
Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide
It provides the highest level of color expression in flexographic printing, allowing ultra-complex designs, smooth gradients, and photo-quality graphics. It is ideal for premium packaging that requires strong visual impact and brand differentiation.
The gearless servo system improves registration accuracy between printing units and ensures stable synchronization. It also reduces mechanical wear, minimizes maintenance needs, and enhances long-term machine reliability.
It is suitable for a wide range of flexible packaging materials, including plastic films (PE, PP, PET), paper, and nonwoven fabrics. It ensures stable ink transfer and high-quality printing results across different substrates and thicknesses.
It is widely used in food packaging, beverage packaging, daily chemical products, pharmaceutical packaging, and industrial flexible packaging industries, especially for high-end branding and complex multi-color designs.
Yes, the machine is designed for continuous high-speed operation up to 500 m/min while maintaining precise registration and stable color performance. It is ideal for large-scale production with strict quality requirements.
Yes, the gearless flexographic flexo printing press can be customized according to different production requirements, including printing width, color configuration, drying systems, and additional functional units. It is designed to provide flexible solutions for various packaging applications.
