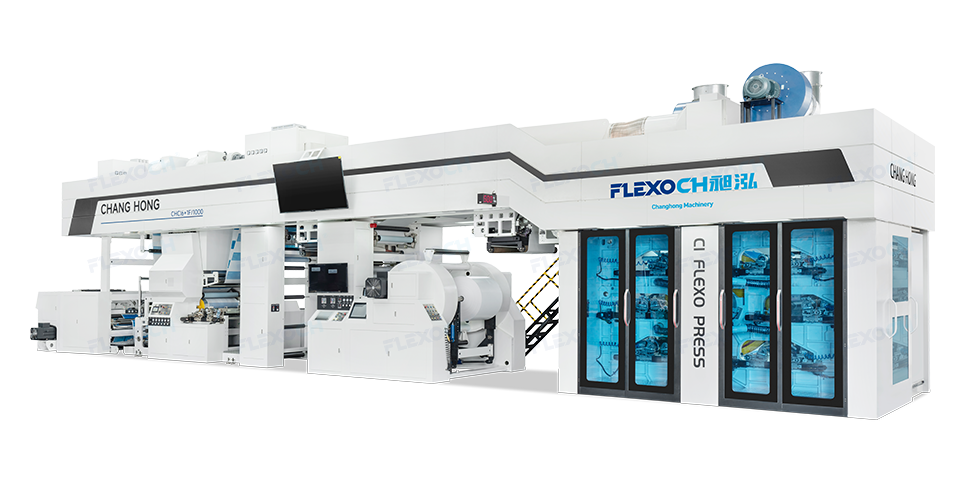

6 Color Gearless Flexo Printing Press

The 6 Color Gearless Flexo Printing Press is a high-speed printing solution designed for high-quality flexible packaging production. Equipped with a full servo drive system,and sleeve structure, it ensures precise registration and stable printing performance. With enhanced 6-color capability, it is ideal for complex multi-color printing on film, paper, and nonwoven materials, delivering consistent quality in continuous production.

Max. Mechanical Speed

500 m/min

Print Width

250-3000mm

Colors

6 Colors

Printing Precision

±0.05mm

Ink

Water base ink

Drive System

Gearless full servo drive

Introduction

Built for high efficiency, precision, and color flexibility, this 6 color flexo printing press integrates intelligent automation and advanced control systems to meet modern flexible packaging production demands. The gearless structure combined with full servo technology ensures smoother operation, higher stability, reduced maintenance requirements, and long-term reliable performance even under continuous high-speed production conditions.

Full servo control ensures precise and stable color registration.

Gearless system reduces wear and improves durability.

Supports 6-color printing for complex graphic designs.

Suitable for high-quality flexible packaging production.

6 Color Gearless Flexo Printing Press for Flexible Packaging

❮

▶

❯

Why Choose This Machine?

high Efficiency. Stable Performance, Excellent Printing Quality

High Efficiency

Mer npeedvo tn 250nimin tomhert high-volume production demands.

Stable Performance

Mdvenced oantrul eyetemendures long term stableoperaton,

Excellent Quality

high precatan svrcng unit dctners chip and rtvd ponting.

Wide Application

Subtitle for various materials and nduatres.

Technical Specifications

Model	CHCI6-600F-Z	CHCI6-800F-Z	CHCI6-1000F-Z	CHCI6-1200F-Z	CHCI6-1400F-Z	CHCI6-1600F-Z
Max. Web Width	650mm	850mm	1050mm	1250mm	1450mm	1650mm
Max. Printing Width	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Max. Mechanical Speed	500m/min
Max. Printing Speed	450m/min
Max. Unwind/Rewind Dia.	Φ800mm/Φ1200mm/Φ1500mm
Drive Type	Gearless full servo drive
Printing Length (repeat)	400-800mm
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified
Ink	Water base ink or solvent in
Range of Substrates	Plastic film,Paper, Non-Woven, Aluminium foil,PP woven
Photopolymer plate	To be specified

Product Samples

Trusted by Customers Across the Globe

Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

Countries & Regions

2000

Happy Customers

Years Experience

Aftersales Support

Frequently Asked Questions

What is the main advantage of a 6 color flexo printing press?

It enables more complex and detailed graphic designs with richer color combinations and smoother gradient effects. Compared with lower-color machines, it provides greater flexibility for high-end packaging applications that require strong visual impact and precise color reproduction.

What is the benefit of the gearless system?

The gearless servo system improves registration accuracy and synchronization between printing units. It reduces mechanical transmission errors, minimizes wear on components, and ensures more stable and reliable long-term operation, especially during high-speed continuous production.

What materials can this machine print on?

It is suitable for a wide range of flexible packaging substrates, including plastic film, paper, and nonwoven materials. The machine ensures stable ink transfer and consistent print quality across different material types and thicknesses.

Is it suitable for high-speed production?

Yes, the flexo printing press is designed for stable high-speed operation while maintaining precise registration and consistent color quality. Its full servo control system ensures smooth running performance even under long-term continuous production conditions.

Can it handle complex multi-color designs?

Yes, the 6-color configuration is specifically designed for high-precision multi-color printing jobs. It supports detailed graphics, fine text, and gradient color effects, making it ideal for premium packaging with high visual requirements.

What kind of company support and service is provided?

We provide full technical support including machine installation, commissioning, operator training, and ongoing after-sales service. Our engineering team assists customers throughout the production process to ensure stable machine performance and efficient operation. Spare parts support and remote technical guidance are also available to help minimize downtime and maintain long-term production reliability.
