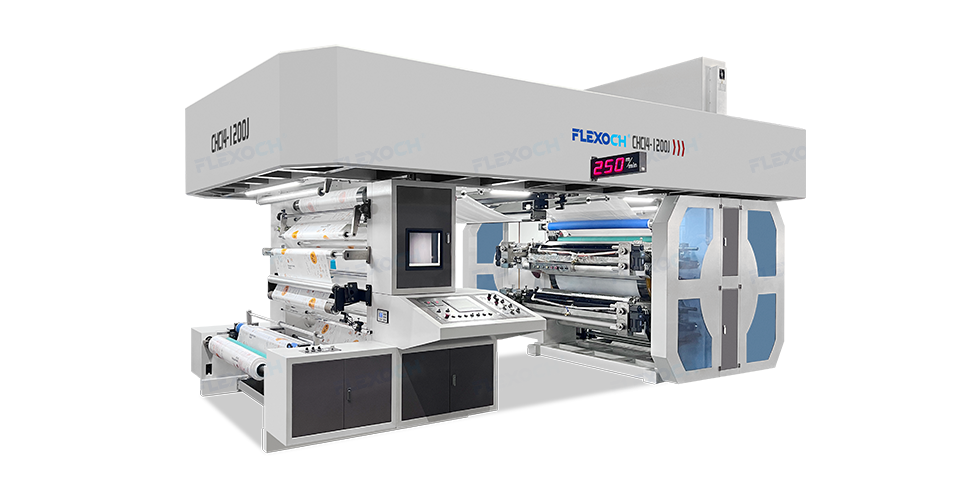

The 4 Color Central Drum Flexo Printing Machine is designed for efficient and reliable flexible packaging printing. Featuring a central impression (CI) drum structure, it delivers stable four-color registration, consistent print quality, and smooth operation. It is an ideal choice for a wide range of packaging applications requiring dependable performance and high production efficiency.
Introduction
Designed to maximize productivity and print consistency, this 4 Color Central Drum Flexo Printing Machine integrates advanced automation and precision control technology for smooth, reliable operation. The CI drum structure provides stable substrate support throughout the printing process, enabling accurate 4-color registration, consistent print quality, and efficient production.
Why Choose This Machine?
high Efficiency. Stable Performance, Excellent Printing Quality
Mer npeedvo tn 250nimin tomhert high-volume production demands.
Mdvenced oantrul eyetemendures long term stableoperaton,
high precatan svrcng unit dctners chip and rtvd ponting.
Subtitle for various materials and nduatres.
Model | CHCI4-600J-S | CHCI4-800J-S | CHCI4-1000J-S | CHCI4-1200J-S | CHCI4-1400J-S | CHCI4-1600J-S |
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm | 1450mm | 1650mm |
Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
Max.Mechanical Speed | 250m/min | |||||
Max. Printing Speed | 200m/min | |||||
Max. Unwind/ Rewind Dia. | Φ800mm/Φ1000mm/Φ1200mm | |||||
Drive Type | Central drum with Gear drive | |||||
Printing Length (repeat) | 350-900mm | |||||
Electrical Supply | Voltage 380V. 50 HZ.3PH or to be specified | |||||
Ink | Water base ink or solvent ink | |||||
Range of Substrates | Plastic film,Paper, Non-Woven, Aluminium foil,PP woven | |||||
Photopolymer plate | To be specified | |||||
Trusted by Customers Across the Globe
Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide
The central drum (CI) structure keeps the substrate in continuous contact with a single impression drum throughout the printing process. This provides excellent registration accuracy, stable web tension, and consistent print quality, especially for flexible packaging materials.
A 4 color configuration is ideal for packaging designs that require high-quality graphics with standard CMYK printing. It offers an excellent balance between print quality, production efficiency, and operating cost.
It is widely used in food packaging, beverage packaging, daily chemical packaging, pharmaceutical packaging, and industrial packaging, making it suitable for a variety of flexible packaging applications.
Yes. The 4 color flexo printing machine is designed for stable, continuous high-speed operation while maintaining accurate registration and consistent print quality, helping improve overall production efficiency.
Yes. The machine can be customized with different printing widths, drying systems, unwinding and rewinding configurations, inspection systems, and other optional features to match specific production requirements and packaging applications.
After installation, we provide remote technical support, operator training, machine optimization guidance, and spare parts supply. Our after-sales team responds promptly to technical inquiries, helping customers maintain stable production and maximize machine performance.
