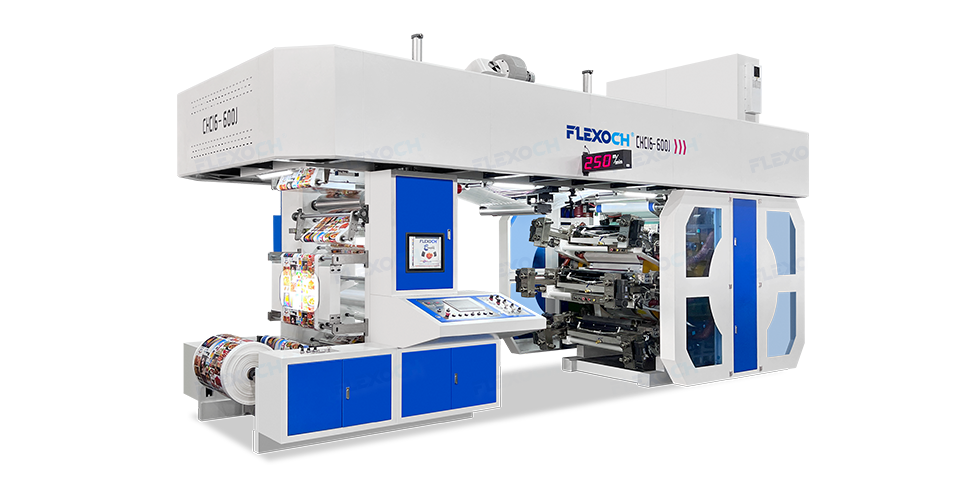

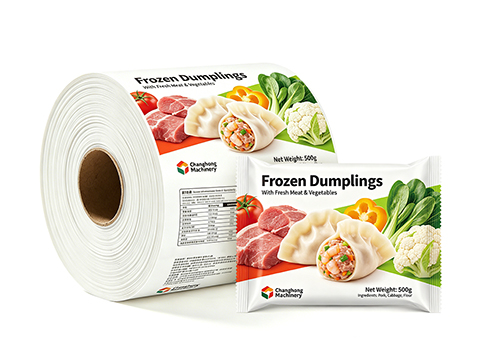

The 6 Color CI Flexo Printing Machine is designed for high-quality flexible packaging printing with outstanding registration accuracy and stable production performance. Featuring a central impression (CI) drum structure, it ensures excellent web stability throughout the printing process. With its 6-color configuration, the machine is widely used in food packaging, beverage packaging, daily chemical packaging, pharmaceutical packaging, and industrial packaging, delivering high-quality multi-color printing for a wide range of packaging applications.
Introduction
Built for high precision, color consistency, and production efficiency, this 6 Color CI Flexo Printing Machine combines an advanced CI drum structure with intelligent control technology to deliver reliable performance. It provides accurate multi-color registration, stable operation, and excellent print quality, making it an ideal solution for modern flexible packaging production.
Why Choose This Machine?
high Efficiency. Stable Performance, Excellent Printing Quality
Mer npeedvo tn 250nimin tomhert high-volume production demands.

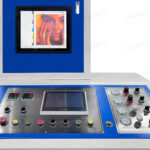

Mdvenced oantrul eyetemendures long term stableoperaton,
high precatan svrcng unit dctners chip and rtvd ponting.
Subtitle for various materials and nduatres.
Model | CHCI6-600J-S | CHCI6-800J-S | CHCI6-1000J-S | CHCI6-1200J-S | CHCI6-1400J-S | CHCI6-1600J-S |
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm | 1450mm | 1650mm |
Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
Max. Mechanical Speed | 250m/min | |||||
Max. Printing Speed | 200m/min | |||||
Max. Unwind/ Rewind Dia. | Φ800mm/Φ1000mm/Φ1200mm | |||||
Drive Type | Central drum with Gear drive | |||||
Printing Length (repeat) | 350-900mm | |||||
Electrical Supply | Voltage 380V. 50 HZ.3PH or to be specified | |||||
Ink | Water base ink or solvent ink | |||||
Range of Substrates | Plastic film,Paper, Non-Woven, Aluminium foil,PP woven | |||||
Photopolymer plate | To be specified | |||||
Trusted by Customers Across the Globe
Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

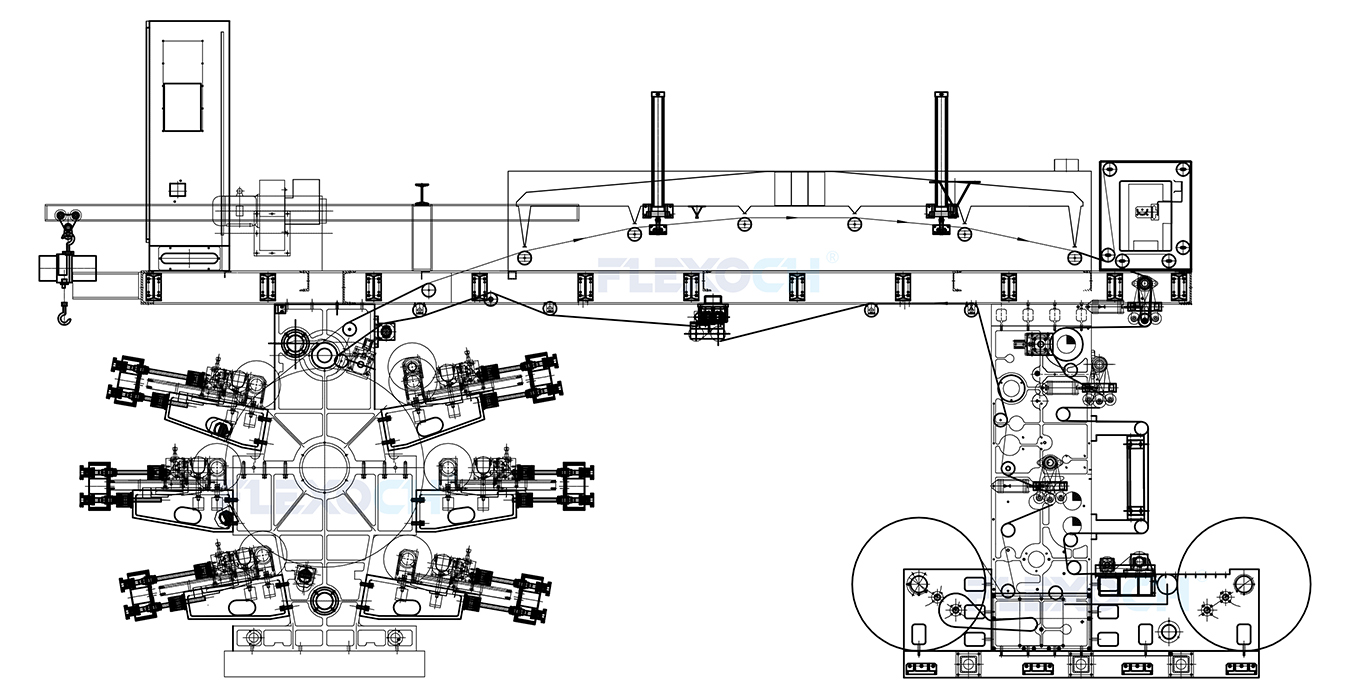

The substrate is held against a single large central impression drum while passing through each printing unit. This design keeps the material under stable tension throughout the printing process, resulting in accurate color registration, reduced vibration, and consistently high print quality.
The CI structure keeps the substrate in constant contact with a single impression drum, providing excellent registration accuracy, stable web tension, and consistent print quality. It is especially suitable for high-quality flexible packaging production.
A 6-color configuration offers greater color flexibility than a 4-color machine, making it ideal for detailed graphics, brand colors, gradients, and high-quality packaging designs while maintaining excellent production efficiency.
The machine is suitable for a wide range of flexible packaging materials, including plastic films, paper, nonwoven fabrics, aluminum foil, and laminated materials. It delivers stable printing performance across different substrates.
Yes. The machine is designed for continuous high-speed operation while maintaining precise registration and consistent print quality. Its stable CI drum structure helps ensure reliable performance throughout long production runs.
Yes. The machine is compatible with water-based, solvent-based, and UV inks, supporting different environmental and production requirements. Its efficient printing process also helps reduce material waste, improve ink utilization, and support more sustainable packaging production.
