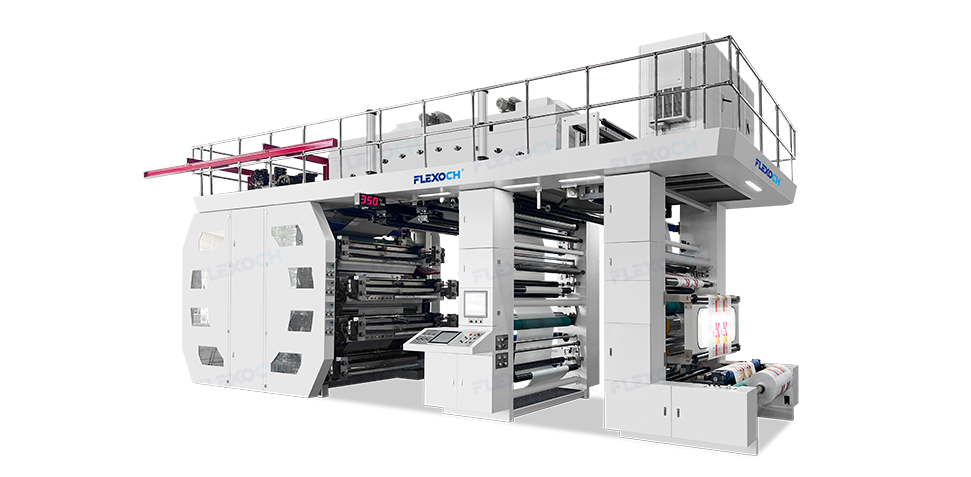

8 Color Central Impression Flexo Press

The 8 Color CI Flexo Printing Machine is developed for demanding flexible packaging applications that require exceptional print quality and production stability. With its advanced CI drum structure and eight-color configuration, it delivers precise color registration, vibrant image reproduction, and reliable high-speed performance for premium packaging production.

Max. Machine Speed

350m/min

Print Width

250-3000mm

Colors

8 Colors

Printing Precision

±0.1mm

Ink

Water base ink

Drive System

Central drum with Gear drive

Introduction

Engineered for demanding flexible packaging applications, this 8 Color Central Impression Flexo Press features a rigid CI drum structure and an advanced control system to maintain stable web tension throughout the printing process. It delivers precise 8-color registration, reliable high-speed performance, and consistent print quality, making it an ideal solution for high-end flexible packaging production.

Supports 350 m/min high-speed printing.

High-precision 8-color registration.

Maintains stable web tension throughout the printing process.

Designed for high-end flexible packaging production

8 Color Central Impression Flexo Press for Flexible Packaging

❮

▶

❯

Why Choose This Machine?

high Efficiency. Stable Performance, Excellent Printing Quality

High Efficiency

Mer npeedvo tn 250nimin tomhert high-volume production demands.

Stable Performance

Mdvenced oantrul eyetemendures long term stableoperaton,

Excellent Quality

high precatan svrcng unit dctners chip and rtvd ponting.

Wide Application

Subtitle for various materials and nduatres.

Technical Specifications

Model	CHCI8-600E-S	CHCI8-800E-S	CHCI8-1000E-S	CHCI8-1200E-S	CHCI8-1400E-S	CHCI8-1600E-S
Max. Web Width	700mm	900mm	1100mm	1300mm	1500mm	1700mm
Max. Printing Width	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Max. Mechanical Speed	350m/min
Max. Printing Speed	300m/min
Max. Unwind/ Rewind Dia.	Φ800mm/Φ1000mm/Φ1200mm
Drive Type	Central drum with Gear drive
Printing Length (repeat)	350-900mm
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified
Ink	Water base ink or solvent ink
Range of Substrates	Plastic film,Paper, Non-Woven, Aluminium foil,PP woven
Photopolymer plate	To be specified

Product Samples

Trusted by Customers Across the Globe

Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

Countries & Regions

2000

Happy Customers

Years Experience

Aftersales Support

Frequently Asked Questions

What are the advantages of a Central Impression flexo press?

The CI drum keeps the substrate in continuous contact with a single large impression drum throughout the printing process. This ensures excellent color registration, stable web tension, reduced vibration, and consistent print quality, making it ideal for high-quality flexible packaging.

Why choose an 8 color CI flexo press?

An 8-color configuration provides greater color flexibility and supports complex graphics, fine text, gradients, and special color combinations. It is the preferred choice for premium packaging that requires outstanding visual quality and brand consistency.

What materials can this machine print on?

The machine is suitable for a wide range of flexible packaging materials, including plastic films (PE, PP, PET), paper, nonwoven fabrics, aluminum foil, and laminated materials. It delivers stable printing performance across different substrates.

Is it suitable for high-speed production?

Yes. The machine supports continuous production at speeds of up to 350 m/min while maintaining precise registration and stable print quality. It is designed for high-volume production with reliable long-term performance.

What is the difference between a CI flexo press and a stack flexo press?

A CI flexo press uses a single central impression drum to keep the substrate under constant tension, providing higher registration accuracy and better print consistency. Compared with a stack flexo press, it is more suitable for high-speed production and premium flexible packaging applications that require superior print quality.

Does the machine support customized configurations?

Yes. The machine can be customized according to different production requirements, including printing width, drying systems, web guiding, automatic register control, video inspection systems, corona treatment, and other optional features. Customized solutions are available to meet various packaging materials and production capacities.
