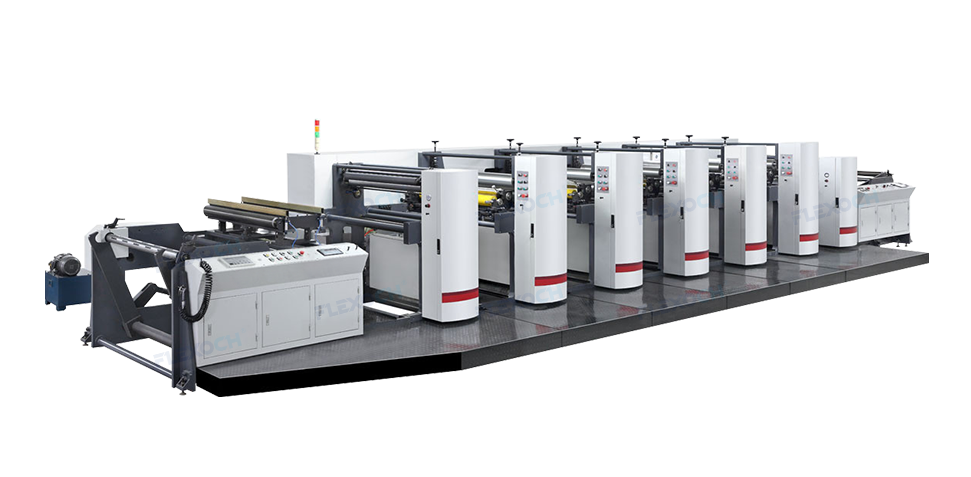

Inline Flexo Printing Press For PP Woven Bag

The Inline Flexo Printing Press for PP Woven Bag is designed for efficient printing and converting of PP woven materials. It is suitable for producing various woven packaging products, including fertilizer bags, feed bags, chemical bags, industrial packaging bags, and other PP woven bag applications. With an inline production structure, the machine improves processing efficiency while delivering stable printing quality and reliable performance.

Max. Machine Speed

5–180 m/min

Print Width

350-550 mm

Colors

4–12 Colors

Printing Precision

±0.15mm

Ink

Water base ink

Drive System

Servo drive

Introduction

Designed for PP woven bag production, this Inline Flexo Printing Press for PP Woven Bag integrates printing and converting processes into a continuous workflow. Its modular inline configuration provides flexible production options, while precise control technology ensures smooth material handling, accurate printing, and efficient operation for different woven bag requirements.

Integrated inline printing and converting.

Reliable printing performance on PP woven substrates.

Flexible configuration for various bag applications.

Improved efficiency with integrated printing and converting.

Inline Flexo Printing Press For PP Woven Bag Printing

❮

❯

Why Choose This Machine?

high Efficiency. Stable Performance, Excellent Printing Quality

High Efficiency

Mer npeedvo tn 250nimin tomhert high-volume production demands.

Stable Performance

Mdvenced oantrul eyetemendures long term stableoperaton,

Excellent Quality

high precatan svrcng unit dctners chip and rtvd ponting.

Wide Application

Subtitle for various materials and nduatres.

Technical Specifications

Model	CHRY-350	CHRY-420	CHRY-550
Max. Printing Speed	5–180 m/min	5–180 m/min	5–180 m/min
Printing Color	4–12 Colors	4–12 Colors	4–12 Colors
Max. Web Width	380 mm	450 mm	580 mm
Max. Printing Width	350 mm	420 mm	550 mm
Max. Unwinding Dia.	600 mm	600 mm	600 mm
Max. Rewinding Dia.	600 mm	600 mm	600 mm
Dimension (8 Colors)	12.55 m × 2.31 m × 1.65 m (L×W×H)
Printing Repeat Length	203.2–635 mm (64T–200T)
Print Plate Thickness	1.7 mm
Material Thickness	0.02–0.5 mm
UV Dryer	LED UV / Mercury UV / Infrared Hot Air Drying

Product Samples

Trusted by Customers Across the Globe

Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

Countries & Regions

2000

Happy Customers

Years Experience

Aftersales Support

Frequently Asked Questions

What are the advantages of an inline flexo printing press for PP woven bags?

The inline structure integrates printing and converting processes in one production line, reducing intermediate handling and making the workflow more efficient. It also helps maintain stable printing quality during continuous production.

Is this machine suitable for high-volume PP woven bag production?

Yes. The machine supports continuous operation with reliable material feeding and stable printing performance, making it suitable for large-scale production of woven packaging bags.

What factors should be considered when choosing an inline flexo printing press for PP woven bags?

Important factors include printing colors, bag size, material characteristics, production capacity, and required converting functions. Proper machine configuration can improve printing results and production efficiency.

Is the press easy to operate and maintain?

Yes. The inline flexo printing press is designed with a user-friendly structure for convenient operation and maintenance. Its integrated production design helps simplify processes and reduce unnecessary downtime.

What printing quality can be achieved with this machine?

The machine provides clear printing, accurate color performance, and good ink adhesion. It is suitable for printing logos, product information, and detailed patterns used in industrial and agricultural packaging.

Can this machine handle different order requirements?

Yes. The machine can handle both standard and customized printing orders, allowing manufacturers to adjust production based on different bag designs, printing patterns, and order quantities.
