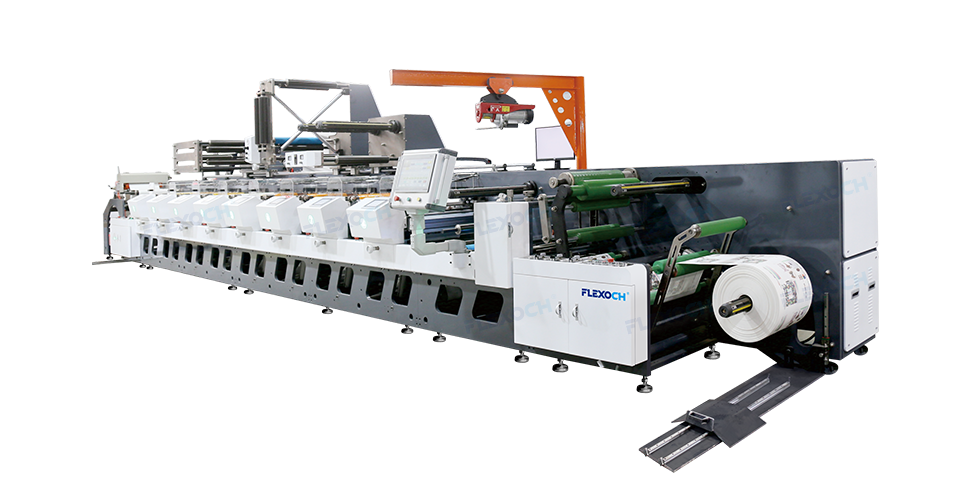

Inline Flexographic Printing Machine For Paper

The Inline Flexographic Printing Machine for Paper is a flexible printing solution for manufacturers producing different types of paper packaging. It is commonly applied in paper bags, paper cups, paper boxes, shopping bags, and other printed paper products.

Different from standalone printing equipment, the inline structure connects printing and post-printing processes in the same production line. This allows operators to complete multiple steps in one pass, reduce repeated material transfer, and maintain stable printing quality during production.

Max. Machine Speed

5–180 m/min

Print Width

350-550 mm

Colors

4–12 Colors

Printing Precision

±0.15mm

Ink

Water base ink

Drive System

Servo drive

Introduction

The modular inline design allows multiple production processes to be completed in one continuous workflow, reducing intermediate processes and improving production efficiency. Each printing unit operates independently for accurate color adjustment, while optional inline converting functions help simplify production and shorten delivery times.

Adjustable configuration for various paper applications.

Supports inline printing and converting.

Independent units for precise color control.

Improves efficiency with one-pass processing.

Inline Flexographic Printing Machine For Paper Printing

❮

❯

Why Choose This Machine?

high Efficiency. Stable Performance, Excellent Printing Quality

High Efficiency

Mer npeedvo tn 250nimin tomhert high-volume production demands.

Stable Performance

Mdvenced oantrul eyetemendures long term stableoperaton,

Excellent Quality

high precatan svrcng unit dctners chip and rtvd ponting.

Wide Application

Subtitle for various materials and nduatres.

Technical Specifications

Model	CHRY-350	CHRY-420	CHRY-550
Max. Printing Speed	5–180 m/min	5–180 m/min	5–180 m/min
Printing Color	4–12 Colors	4–12 Colors	4–12 Colors
Max. Web Width	380 mm	450 mm	580 mm
Max. Printing Width	350 mm	420 mm	550 mm
Max. Unwinding Dia.	600 mm	600 mm	600 mm
Max. Rewinding Dia.	600 mm	600 mm	600 mm
Dimension (8 Colors)	12.55 m × 2.31 m × 1.65 m (L×W×H)
Printing Repeat Length	203.2–635 mm (64T–200T)
Print Plate Thickness	1.7 mm
Material Thickness	0.02–0.5 mm
UV Dryer	LED UV / Mercury UV / Infrared Hot Air Drying

Product Samples

Trusted by Customers Across the Globe

Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

Countries & Regions

2000

Happy Customers

Years Experience

Aftersales Support

Frequently Asked Questions

What are the advantages of an inline flexographic printing machine for paper?

An inline structure connects printing and converting processes in a single production line, reducing manual handling between steps, optimizing the production workflow, and improving overall efficiency.

What paper products can this Inline Flexographic Printing Machine produce?

This machine is commonly used for paper packaging production, including paper cups, paper bowls, food containers, hamburger boxes, pizza boxes, pharmaceutical boxes, paper bags, shopping bags, and other printed paper products.

Can the machine integrate additional converting functions?

Yes. The Inline Flexographic Printing Machine can be equipped with different inline converting units, such as die cutting, slitting, rewinding, sheeting, and punching, based on specific production needs.

Can the Inline Flexographic Printing Machine support continuous production?

Yes. The machine supports continuous operation with stable printing performance and consistent quality, making it suitable for medium- and large-scale paper packaging production.

What types of inks are supported?

The machine can work with water-based, solvent-based, and UV inks. Manufacturers can choose the appropriate ink type according to the paper material, product requirements, and printing process.

Can the Inline Flexographic Printing Machine be customized?

Yes. The machine can be customized according to different production requirements, including printing width, drying systems, web guiding, automatic register control, video inspection systems, corona treatment, and other optional features. Customized solutions are available to meet various packaging materials and production capacities.
