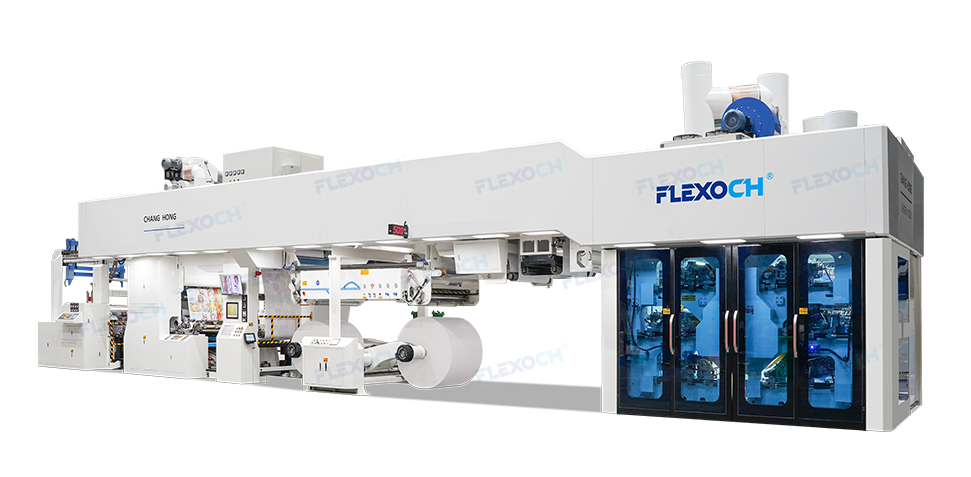

Flexo Printing Machine for Paper

The Flexo Printing Machine for Paper is designed for high-speed, high-precision roll-to-roll printing on paper materials. Equipped with a gearless full servo drive system, it delivers accurate registration, stable operation, and consistent print quality at speeds of up to 500 m/min. With 4–10 color configurations, it is suitable for paper packaging and other industrial paper printing applications.

Max. Mechanical Speed

500 m/min

Print Width

250-3000mm

Colors

4-10 Colors

Printing Precision

±0.05mm

Ink

Water base ink

Drive System

Gearless full servo drive

Introduction

Designed for high-speed, high-quality roll-to-roll printing on paper materials, this Flexo Printing Machine for Paper combines advanced servo technology with precise printing control. Its gearless full servo drive system supports accurate registration and stable operation, achieving printing speeds of up to 500 m/min with printing precision of ±0.05mm. With flexible 4–10 color configurations, the machine provides an efficient printing solution for paper packaging and various industrial paper applications.

High-speed paper printing at up to 500 m/min.

Gearless full servo drive for precise motion control.

High printing precision of ±0.05mm.

Flexible 4–10 color configurations for multicolor designs.

❮

▶

❯

Why Choose This Machine?

High-Speed Production. Advanced Servo Control. Exceptional Printing Precision

High-Speed Production

With a maximum machine speed of 500 m/min, the machine supports high-volume paper printing operations and helps improve overall production efficiency.

Gearless Full Servo Drive

The advanced gearless full servo drive system enables independent control of printing units, supporting accurate synchronization, responsive adjustment, and stable machine operation.

Excellent Printing Quality

With printing precision of ±0.05mm, the machine helps maintain accurate color registration and consistent print quality for demanding multicolor paper printing applications.

Flexible Applications

Supporting 4–10 colors and a print width of 250–3000mm, the machine accommodates different paper widths and printing designs for paper packaging and industrial applications.

Technical Specifications

Model	CHCI6-600F-Z	CHCI6-800F-Z	CHCI6-1000F-Z	CHCI6-1200F-Z	CHCI6-1400F-Z	CHCI6-1600F-Z
Max. Web Width	650mm	850mm	1050mm	1250mm	1450mm	1650mm
Max. Printing Width	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Max. Mechanical Speed	500m/min
Max. Printing Speed	450m/min
Max. Unwind/ Rewind Dia.	Φ800mm/Φ1200mm/Φ1500mm
Drive Type	Gearless full servo drive
Printing Length (repeat)	400-800mm
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified
Ink	Water base ink or solvent in
Range of Substrates	Paper, Paper bag, Paper cup,Paper box
Photopolymer plate	To be specified

Product Samples

Trusted by Customers Across the Globe

Our machines are esported to more than 80 countries and regions, trusted by thousands of customers worldwide

Countries & Regions

2000

Happy Customers

Years Experience

Aftersales Support

Frequently Asked Questions

What materials can this Flexo Printing Machine for Paper print on?

This machine is designed for roll-to-roll paper printing. The suitable paper types and grammages depend on the machine configuration and specific production requirements.

What is the maximum printing speed of this paper flexo printing machine?

The machine has a maximum speed of 500 m/min, making it suitable for high-volume paper printing production.

How many colors does this machine support?

The machine supports 4–10 colors, providing flexibility for multicolor graphics, logos, text, and complex printing designs.

What is the maximum print width?

The machine supports a print width ranging from 250mm to 3000mm, accommodating different paper web widths and production requirements.

What are the advantages of a gearless full servo drive system?

A gearless full servo drive system provides precise control of individual printing units and synchronized operation. It helps improve registration accuracy, supports stable high-speed printing, and allows more flexible production adjustments.

What type of ink does this flexo printing machine use?

The machine uses water-based ink, making it suitable for paper printing applications requiring water-based flexographic printing. Actual print performance depends on the paper surface, ink formulation, and drying conditions.
